PandA Type B – Universal inc Caiman Model (UK1, Black and OG UK2/3)

Type B – Universal 65 to 70mm (suplied) spacing

This consists of two separate mounts, one front and one rear. As supplied, they will fit a chassis width of 70mm but can be cut down by the user to a minimum of 65mm (2.5mm either side max.). They are fitted by sliding over a standard round chassis brace and further secured by 2 x M3x10 button head bolts.

NB: Rear photo shows fitment to a Caiman with sloping rear holes but also can be fitted level to rails with hozirontal rear shock hoop holes.

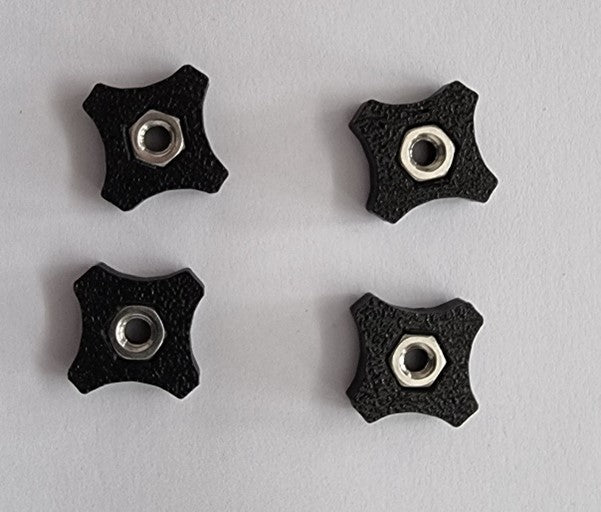

Each body post is an M4x16 button head bolt. These are positioned 35mm apart. They can be replaced for longer ones by the user and spacers added above if required to fit various bodyshells.  The body is then attached with the thumbscrews as shown below.  All the hardware required is supplied in the packaging with the exception of longer M4 bolts and spacers.
