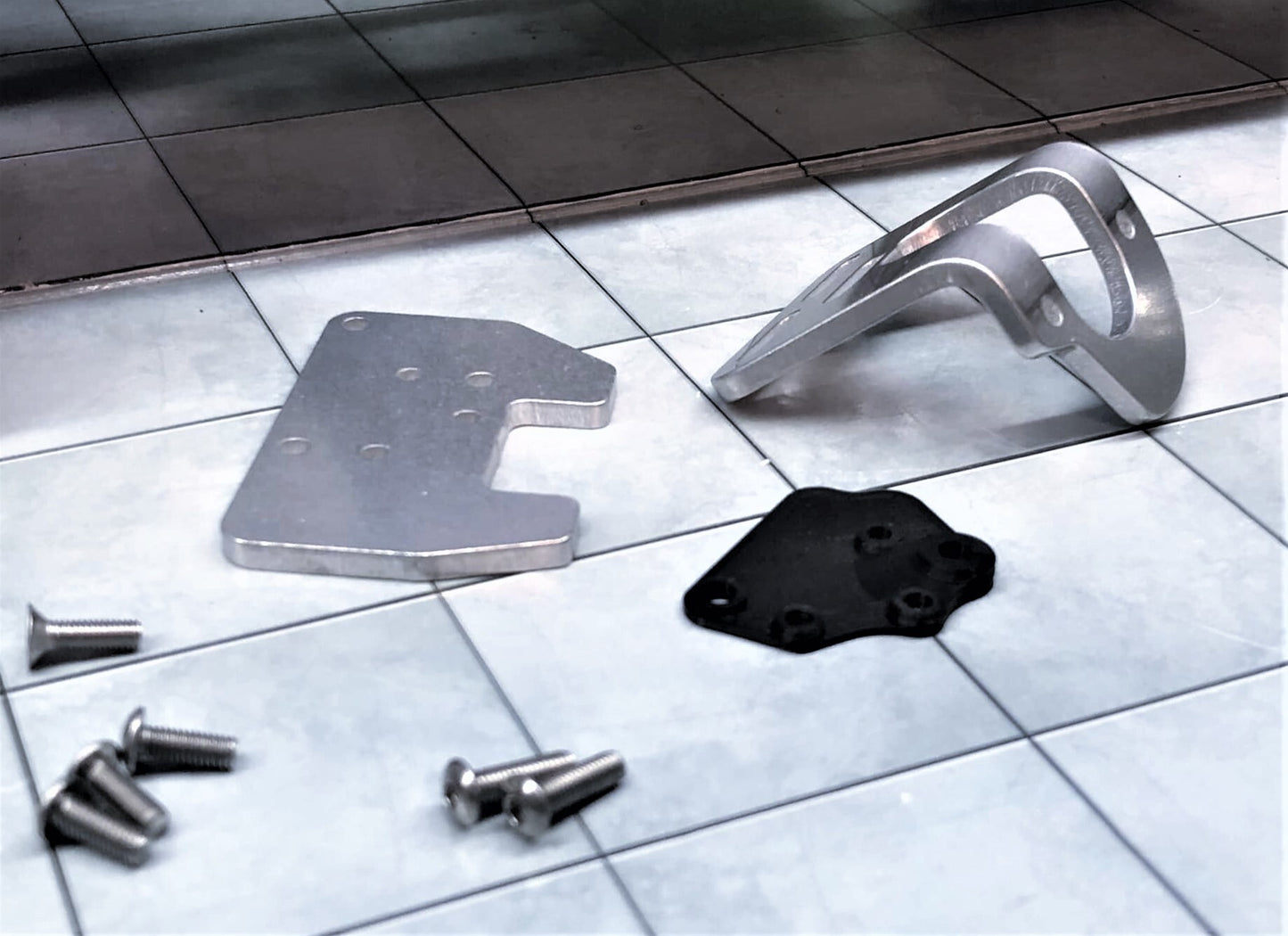

Skid TRX4 for Caiman UK1/C1 UK2UK3/C2C3 Flat TRX4 Trans Skid by Spare Time Hobbies

Spare Time Hobbies TRX4 Skid w Motor Mount for Caiman C1 C2 C3 FLAT skid (will run at 8 degrees) or Stock TRX4

Product Details
The TRX4 transmission flat belly skid utilizes the stock geometry for the lower links and the front upper link/ph link. The rear upper links will need to be shorter by about 15mm to use the chassis upperlink mounting positions. This skid requires the use of our new "Comp Motor Plate" which keeps the motor nearly at the same position as with the stock trans skid with the added benefit of more belly clearance.

The motor plate is constructed from 3.175mm Aluminium and is bent to shape in a press. The transmission top plate offers a stable mounting point for adjustability in pinion sizes with three screws to secure the plate in place to prevent shifting while in a bind.

Included hardware: 2 - M3x6 BHS, 9 - M3x8 BHS, 2 - M3x10 BHS, 4 - M3x22 BHS, 1 - M3x10 Counter
